테스트 환경
<Tibero DB>
OS : Ubuntu 24.04.1
Tibero Version : 6.7.1
hostname : tibero01
ip : 192.168.1.214
TB_HOME : /home/tibero01/tibero6
TB_SID : tibero / tibero2 (멀티 인스턴스)
Hardware : R640
script 위치 : /nsr/scripts/
log 위치 : /nsr/scirpts/logs/
복구할 백업본 확인
백업셋 확인
select * from v$BACKUP_SET;
쉘 이용해서 출력
START_TIME 확인해서 복구에 사용할 백업본 SET_ID 확인

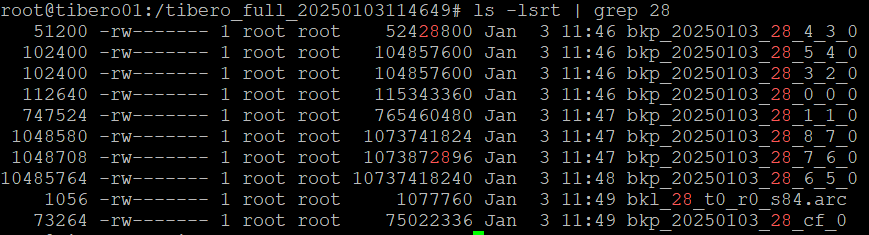

해당 SET_ID를 가진 백업본 위치 확인
백업셋 번호 28번
경로 : /tibero_full_20250103114649
장애 시나리오
datafile 확인
tbsql 접속
tbsql sys/tibero
데이터파일 이름 및 용량 조회
SELECT FILE_NAME FROM DBA_DATA_FILES;
datafile 강제 삭제
rm -rf $TB_HOME/database/<SID>/test01001.dtf
DB Down

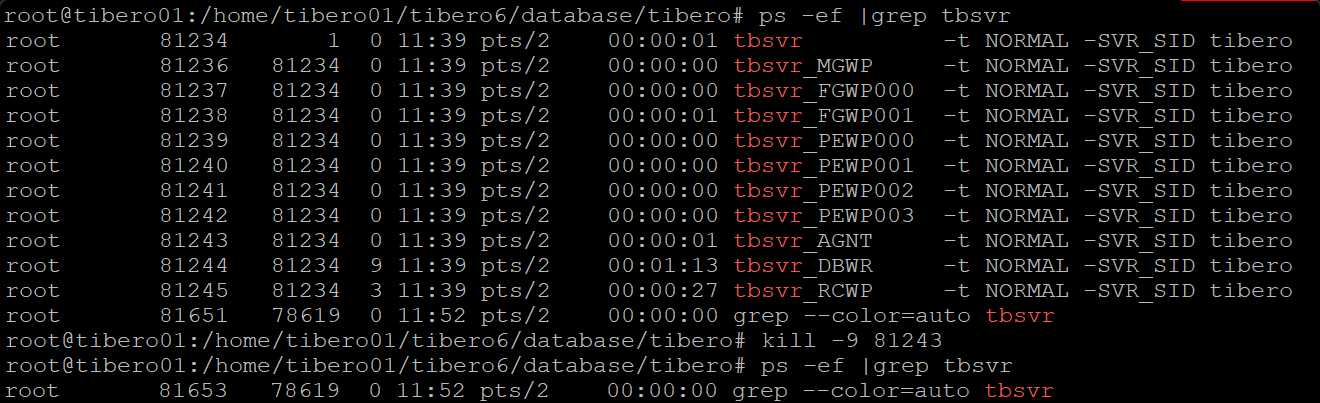

ps -ef | grep tbsvr
kill -9 <tbsvr_AGNT의 PID>
DB open

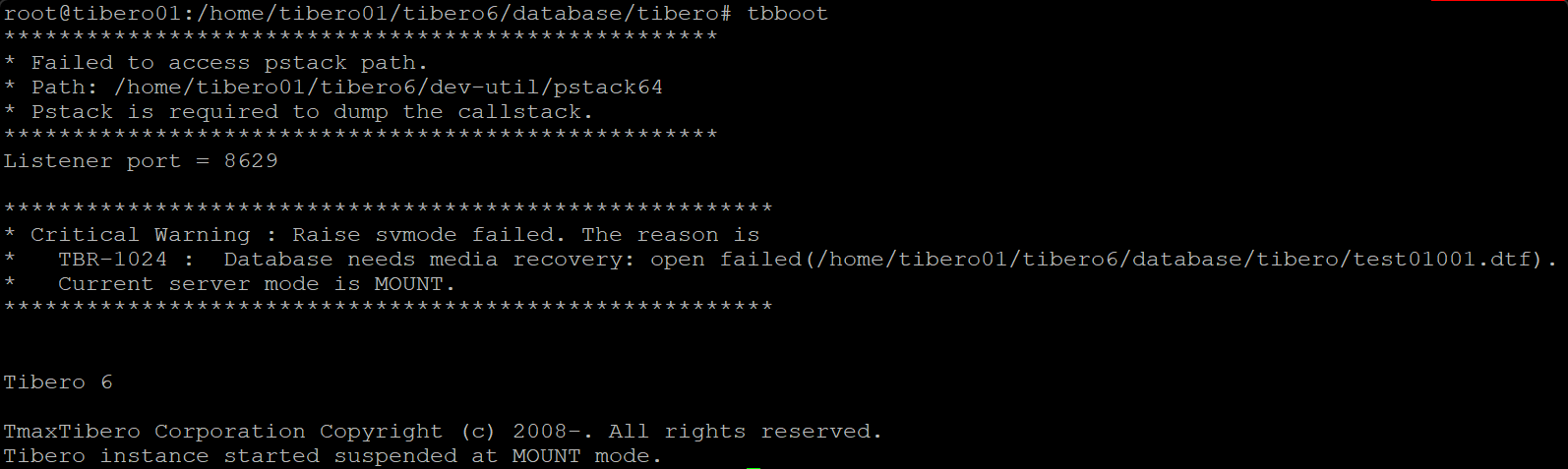

tbboot
error 메세지 발생
TBR-1024 : Database needs media recovery : open failed(/home/tibero01/tibero6/database/tibero/test01001.dtf).

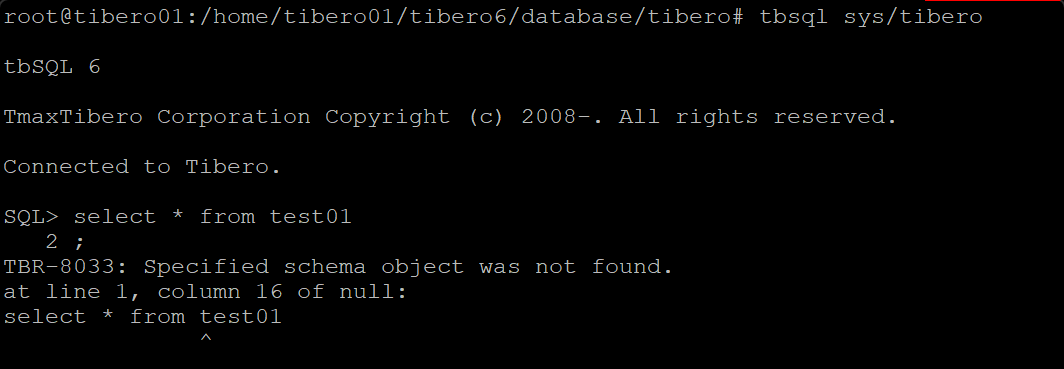

데이터 조회
select * from test01;
table이 없는 것으로 출력
Full 복구
모니터링 방법 2가지
1. -v 옵션 사용 (1회성)
tbrmgr recover -w -p 8 -v -o /tibero_full_20250103114649

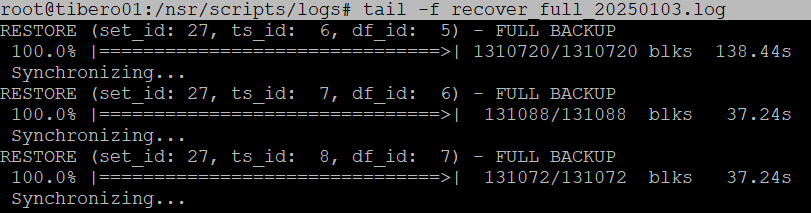

2. log 생성 후 세션 하나 더 열어서 tail -f
tbrmgr recover -w -p 8 -o /tibero_full_20250103114649 > /nsr/scripts/logs/recover_full.txt
옵션 설명
-w : 아카이브 로그도 사용
-p 8 : 채널 8개 사용
-v : 모니터링 기능 사용
-o : 백업본 경로 지정
로그 생성 full 복구 진행
로그 결과 전문
Tibero instance terminated (ABNORMAL mode).
info file is deleted.
****************************************************
* Failed to access pstack path.
* Path: /home/tibero01/tibero6/dev-util/pstack64
* Pstack is required to dump the callstack.
****************************************************
Tibero 6
TmaxTibero Corporation Copyright (c) 2008-. All rights reserved.
Tibero instance started up (MOUNT mode).
==============================================================================
= Recovery Manager(RMGR) starts =
= =
= TmaxTibero Corporation Copyright (c) 2008-. All rights reserved. =
==============================================================================
RMGR '-o' option used
: restoring from /tibero_full/
==============================================================================
RMGR - recovery (WITH ARCHIVELOG)
==============================================================================
Shutting down the instance...
Control file #0 (/home/tibero01/tibero6/database/tibero/c1.ctl) is NOT accessible
No existing control files are found. The backup control file must be restored.
Recover control file #0 /home/tibero01/tibero6/database/tibero/c1.ctl from /tibero_full//bkp_20250103_27_cf_0
Control files are recovered from the backup control file.
Booting up the instance...
Initializing the restore progress, it may take few minutes...
RMGR begins restoring backup files.
Full backup set_id: 27
Last incremental backup set_id: 27
RESTORE (set_id: 27, ts_id: 0, df_id: 0) - FULL BACKUP
100.0% |===============================>| 14080/14080 blks 7.05s
Synchronizing...
RESTORE (set_id: 27, ts_id: 1, df_id: 1) - FULL BACKUP
100.0% |===============================>| 93440/93440 blks 29.08s
Synchronizing...
RESTORE (set_id: 27, ts_id: 3, df_id: 2) - FULL BACKUP
100.0% |===============================>| 12800/12800 blks 7.05s
Synchronizing...
RESTORE (set_id: 27, ts_id: 4, df_id: 3) - FULL BACKUP
100.0% |===============================>| 6400/6400 blks 3.04s
Synchronizing...
RESTORE (set_id: 27, ts_id: 5, df_id: 4) - FULL BACKUP
100.0% |===============================>| 12800/12800 blks 6.04s
Synchronizing...
RESTORE (set_id: 27, ts_id: 6, df_id: 5) - FULL BACKUP
100.0% |===============================>| 1310720/1310720 blks 138.44s
Synchronizing...
RESTORE (set_id: 27, ts_id: 7, df_id: 6) - FULL BACKUP
100.0% |===============================>| 131088/131088 blks 37.24s
Synchronizing...
RESTORE (set_id: 27, ts_id: 8, df_id: 7) - FULL BACKUP
100.0% |===============================>| 131072/131072 blks 37.24s
Synchronizing...
Settling...
Restoring logfiles...
Archivelog log-t0-r0-s80.arc (thread: 0, set_id: 27, low_tsn: 539030, next_tsn: 542643) restored
Tibero instance terminating (NORMAL mode)... /Listener port = 8629
Tibero instance terminated (NORMAL mode).
****************************************************
* Failed to access pstack path.
* Path: /home/tibero01/tibero6/dev-util/pstack64
* Pstack is required to dump the callstack.
****************************************************
Tibero 6
TmaxTibero Corporation Copyright (c) 2008-. All rights reserved.
Tibero instance started up (NORMAL mode).
Archive logfiles restoration succeeded
Database restoration succeeded
Given recovery point: COMPLETE RECOVERY
Recoverable point using only backup archivelogs: change 542642
recoverSQL: ALTER DATABASE RECOVER AUTOMATIC
Database automatic recovery succeeded
Shutting down the instance...
Booting up the instance...
RMGR recovery ends
Listener port = 8629

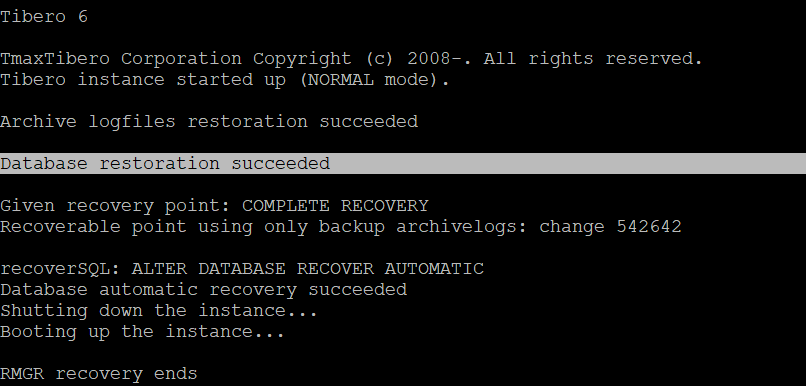

복구 성공
로그 밑 부분 succeed 결과 출력
데이터파일 조회 가능
Tablespace 복구
모니터링 방법 2가지
1. -v 옵션 사용 (1회성)
tbrmgr recover -w -p 8 -v --tablespace test01 -o /tibero_full_20250103114649

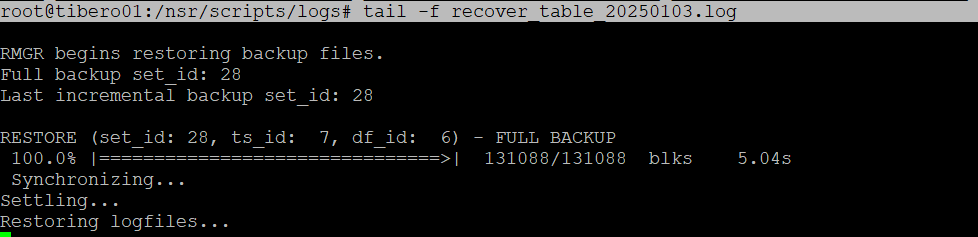

2. log 생성 후 세션 하나 더 열어서 tail -f
tbrmgr recover -w -p 8 --tablespace test01 -o /tibero_full_20250103114649 > /nsr/scripts/logs/recover_table.txt
옵션 설명
-w : 아카이브 로그도 사용
-p 8 : 채널 8개 사용
-v : 모니터링 기능 사용
-o : 백업본 경로 지정
--tablespace : 복구할 tablespace 지정
로그 생성 tablespace 복구 진행
출력 결과 전문
Tibero instance terminated (ABNORMAL mode).
info file is deleted.
****************************************************
* Failed to access pstack path.
* Path: /home/tibero01/tibero6/dev-util/pstack64
* Pstack is required to dump the callstack.
****************************************************
Tibero 6
TmaxTibero Corporation Copyright (c) 2008-. All rights reserved.
Tibero instance started up (MOUNT mode).
==============================================================================
= Recovery Manager(RMGR) starts =
= =
= TmaxTibero Corporation Copyright (c) 2008-. All rights reserved. =
==============================================================================
RMGR '-o' option used
: restoring from /tibero_full_20250103114649/
==============================================================================
RMGR - recovery (WITH ARCHIVELOG)
==============================================================================
Shutting down the instance...
Control file #0 (/home/tibero01/tibero6/database/tibero/c1.ctl) is accessible
All control files are accessible. No need to restore the backup control file.
Booting up the instance...
Initializing the restore progress, it may take few minutes...
RMGR begins restoring backup files.
Full backup set_id: 28
Last incremental backup set_id: 28
RESTORE (set_id: 28, ts_id: 7, df_id: 6) - FULL BACKUP
100.0% |===============================>| 131088/131088 blks 5.04s
Synchronizing...
Settling...
Restoring logfiles...
Archivelog log-t0-r0-s84.arc (thread: 0, set_id: 28, low_tsn: 544473, next_tsn: 544743) restored
Tibero instance terminating (NORMAL mode)... /Listener port = 8629
Tibero instance terminated (NORMAL mode).
****************************************************
* Failed to access pstack path.
* Path: /home/tibero01/tibero6/dev-util/pstack64
* Pstack is required to dump the callstack.
****************************************************
Tibero 6
TmaxTibero Corporation Copyright (c) 2008-. All rights reserved.
Tibero instance started up (NORMAL mode).
Archive logfiles restoration succeeded
Database restoration succeeded
Given recovery point: COMPLETE RECOVERY
Recoverable point using only backup archivelogs: change 544742
recoverSQL: ALTER DATABASE RECOVER AUTOMATIC
Database automatic recovery succeeded
Shutting down the instance...
Booting up the instance...
RMGR recovery ends

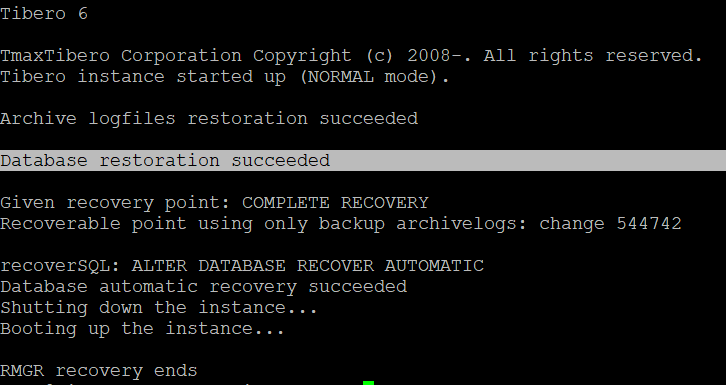

복구 성공
